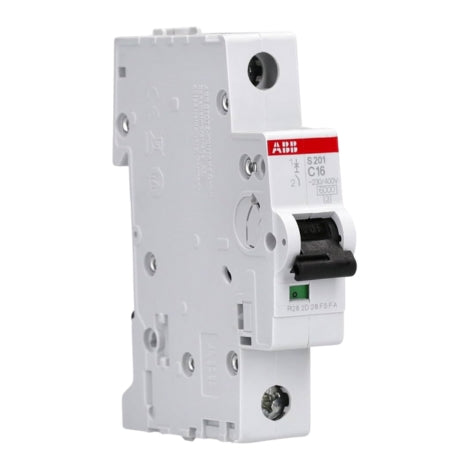

1p 16A MCB

ABB 16A MCB Specifications

✅ Product Type:

• Miniature Circuit Breaker (MCB)

✅ Brand:

• ABB

✅ Rated Current (In):

• 16 Amps

✅ Poles:

• 1P (Single Pole)
  (also available in 2P, 3P, 4P models if needed)

✅ Rated Voltage (Un):

• 230/400V AC (Single/Three Phase)

✅ Breaking Capacity:

• 6 kA or 10 kA (depending on series)

✅ Tripping Curve:

• B, C, or D curve

  • B Curve – for residential/light commercial use

  • C Curve – for commercial/industrial use

  • D Curve – for high inrush current loads (motors, transformers)

✅ Frequency:

• 50/60 Hz

✅ Standards:

• IEC/EN 60898-1

• IEC/EN 60947-2 (for industrial-rated models)

✅ Mounting:

• DIN rail (35 mm standard rail)

✅ Terminal Capacity:

• 25 mm² max (solid or stranded cable)

✅ Operating Temperature:

• -25°C to +55°C

✅ Protection Class:

• IP20 (as standard)

✅ Function:

• Overload and short-circuit protection

✅ Applications:

• Distribution boards in residential, commercial, and industrial systems
